A solid sandstone monument is fabricated from a single mass block where feasible with smooth cut finishes and eased edges. The monument is anchored to a concrete foundation utilizing concealed stainless steel dowels. Steel anchors and a steel wrap provide structural reinforcement at the base connection. Metal lettering on stand-offs is mounted to the face of the monument.

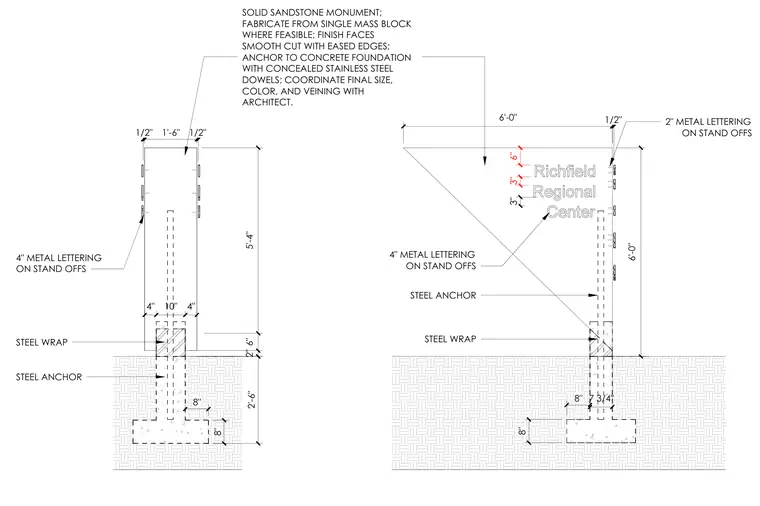

5'-4" 6" 2" 4" 10" 4" 8" 8" 2'-6" 4" METAL LETTERING ON STAND OFFS STEEL ANCHOR STEEL WRAP 1/2" 1'-6" 1/2" 6'-0" 6'-0" 7 3/4" 4" METAL LETTERING ON STAND OFFS STEEL ANCHOR 8" 8" 6" 3" 3" 2" METAL LETTERING ON STAND OFFS STEEL WRAP 1/2" SOLID SANDSTONE MONUMENT; FABRICATE FROM SINGLE MASS BLOCK WHERE FEASIBLE; FINISH FACES SMOOTH CUT WITH EASED EDGES; ANCHOR TO CONCRETE FOUNDATION WITH CONCEALED STAINLESS STEEL DOWELS; COORDINATE FINAL SIZE, COLOR, AND VEINING WITH ARCHITECT.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
