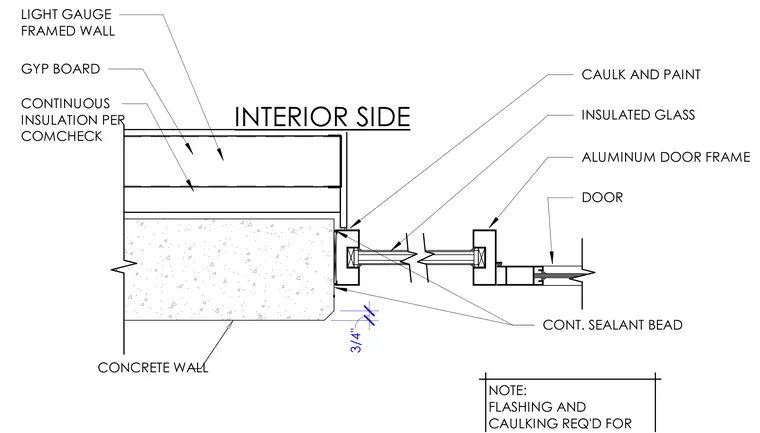

An aluminum door frame connects to the jamb of a concrete wall with a continuous sealant bead and perimeter caulking. The adjacent interior partition consists of a light-gauge framed wall finished with gypsum board over continuous insulation sized per ComCheck. Insulated glass is installed within the aluminum framing, and a 3/4 inch dimension is noted at the concrete reveal.
NOTE: FLASHING AND CAULKING REQ'D FOR DOOR INSULATED GLASS INTERIOR SIDE CONCRETE WALL ALUMINUM DOOR FRAME CAULK AND PAINT LIGHT GAUGE FRAMED WALL GYP BOARD CONT. SEALANT BEAD CONTINUOUS INSULATION PER COMCHECK 3/4"
