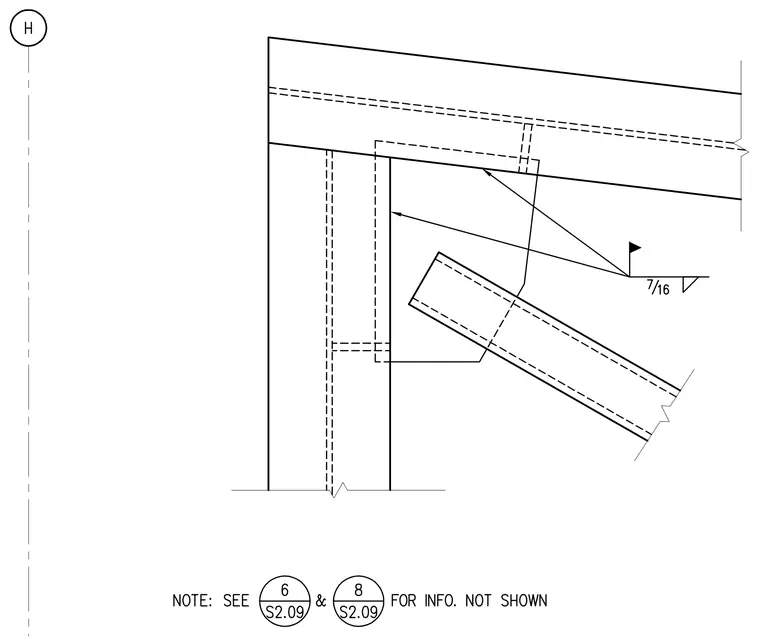

A structural steel truss web member connects to a vertical column using shop-welded or bolted gusset plates. A seven-sixteenths inch fillet weld with field-weld flag indicators secures the connection at the node. Grid line H is referenced at the column centerline. Reference notes direct the builder to sheets six and eight of series S2.09 for additional information not shown.
