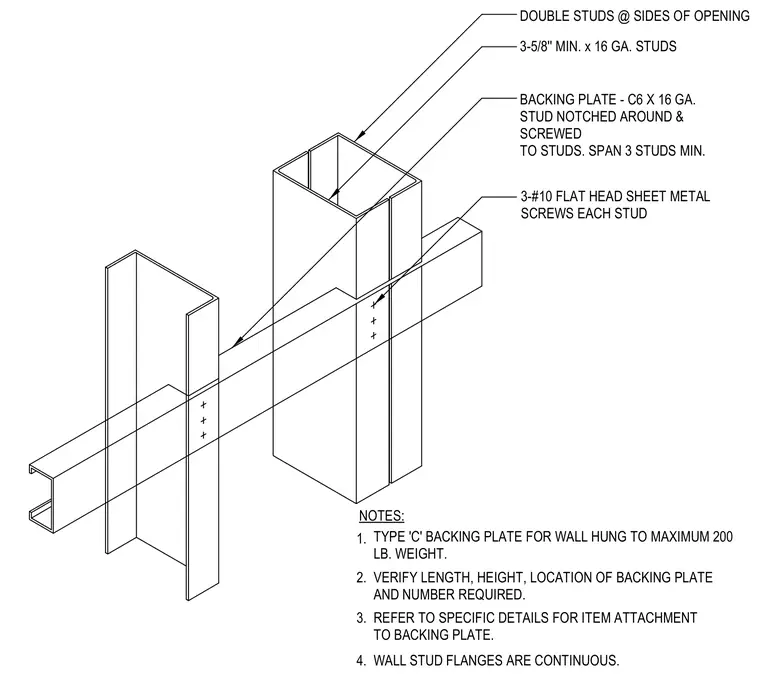

A Type C steel channel backing plate is notched around and screwed to a minimum of three continuous metal studs to support wall-hung loads up to two hundred pounds. The assembly utilizes minimum 3-5/8 inch by 16-gauge steel studs, including double studs at the sides of the opening. The C6 by 16-gauge backing plate is fastened to each intersected stud using three number 10 flat head sheet metal screws. Wall stud flanges remain continuous through the backing installation.
NOTES: TYPE 'C' BACKING PLATE FOR WALL HUNG TO MAXIMUM 200 LB. WEIGHT. VERIFY LENGTH, HEIGHT, LOCATION OF BACKING PLATE AND NUMBER REQUIRED. REFER TO SPECIFIC DETAILS FOR ITEM ATTACHMENT TO BACKING PLATE. WALL STUD FLANGES ARE CONTINUOUS. 1. 2. 3. 4. DOUBLE STUDS @ SIDES OF OPENING 3-5/8'' MIN. x 16 GA. STUDS BACKING PLATE - C6 X 16 GA. STUD NOTCHED AROUND & SCREWED TO STUDS. SPAN 3 STUDS MIN. 3-#10 FLAT HEAD SHEET METAL SCREWS EACH STUD
