A cable railing extension and guard termination occurs at the top of a stair run at main landings. The assembly anchors adjacent to a floor slab and steel framing condition sealed with a continuous bead of sealant at the joint. Below the landing, metal stud framing supports a painted gypsum board finish at the soffit.

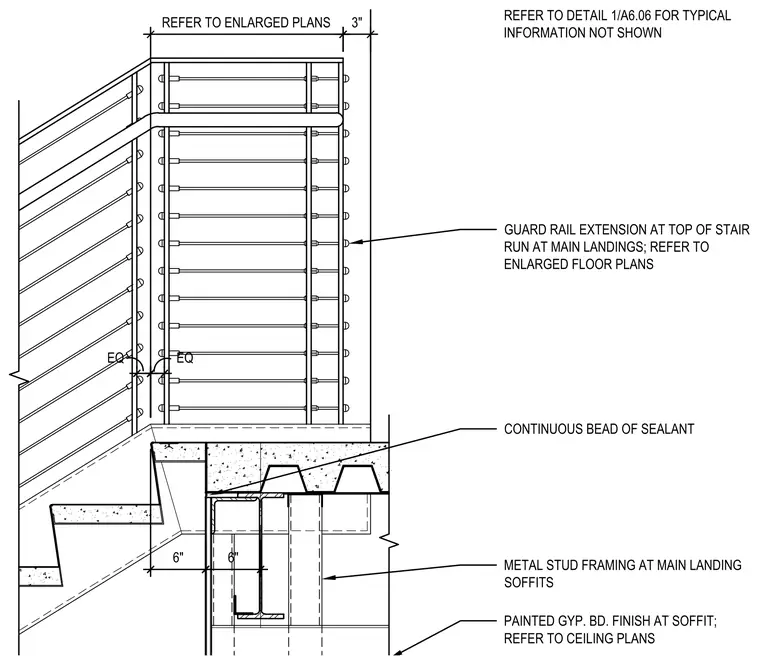

REFER TO DETAIL 1/A6.06 FOR TYPICAL INFORMATION NOT SHOWN GUARD RAIL EXTENSION AT TOP OF STAIR RUN AT MAIN LANDINGS; REFER TO ENLARGED FLOOR PLANS EQ EQ 6" 6" REFER TO ENLARGED PLANS 3" METAL STUD FRAMING AT MAIN LANDING SOFFITS PAINTED GYP. BD. FINISH AT SOFFIT; REFER TO CEILING PLANS CONTINUOUS BEAD OF SEALANT
