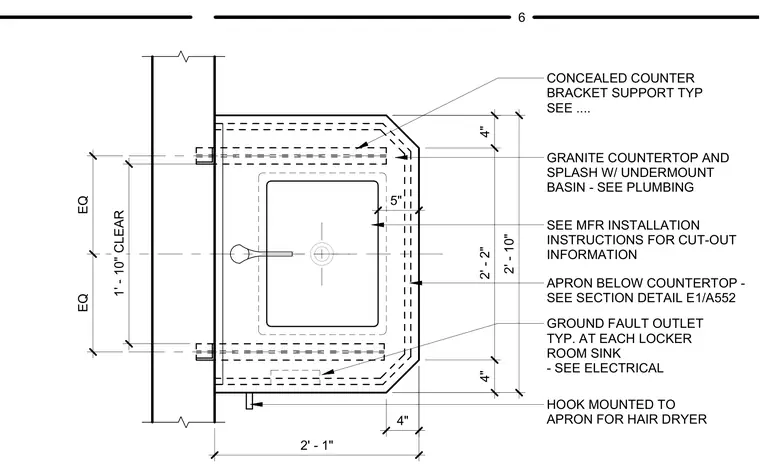

A granite countertop with a splash and undermount basin is supported by concealed counter brackets secured to the wall. An apron panel below the countertop conceals the structural framing and features a hook mounted for hair dryers. A ground fault circuit interrupter outlet is positioned typically at each locker room sink location per electrical specifications.
4" 2' - 2" 4" 2' - 10" 4" 2' - 1" GROUND FAULT OUTLET TYP. AT EACH LOCKER ROOM SINK - SEE ELECTRICAL GRANITE COUNTERTOP AND SPLASH W/ UNDERMOUNT BASIN - SEE PLUMBING CONCEALED COUNTER BRACKET SUPPORT TYP SEE .... HOOK MOUNTED TO APRON FOR HAIR DRYER SEE MFR INSTALLATION INSTRUCTIONS FOR CUT-OUT INFORMATION APRON BELOW COUNTERTOP - SEE SECTION DETAIL E1/A552 1' - 10" CLEAR EQ EQ 5" 6
