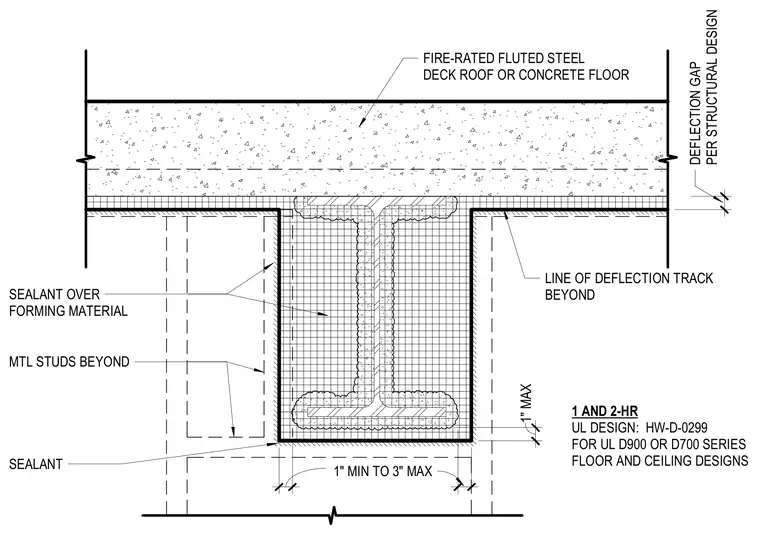

A fire-rated fluted steel deck roof or concrete floor bears overhead with a designated deflection gap per structural design ranging from one to three inches. Metal studs run beyond the structural steel shape, framed with a line of deflection track. The penetration opening is sealed with sealant over forming material to maintain the required one-hour and two-hour fire ratings per Underwriters Laboratories design HW-D-0299 for UL D900 or D700 series floor and ceiling designs.
FIRE-RATED FLUTED STEEL DECK ROOF OR CONCRETE FLOOR LINE OF DEFLECTION TRACK BEYOND 1" MAX 0' GAP 0' MIN SEALANT OVER FORMING MATERIAL MTL STUDS BEYOND SEALANT 1 AND 2-HR UL DESIGN: HW-D-0299 FOR UL D900 OR D700 SERIES FLOOR AND CEILING DESIGNS DEFLECTION GAP PER STRUCTURAL DESIGN 1" MIN TO 3" MAX 0'
