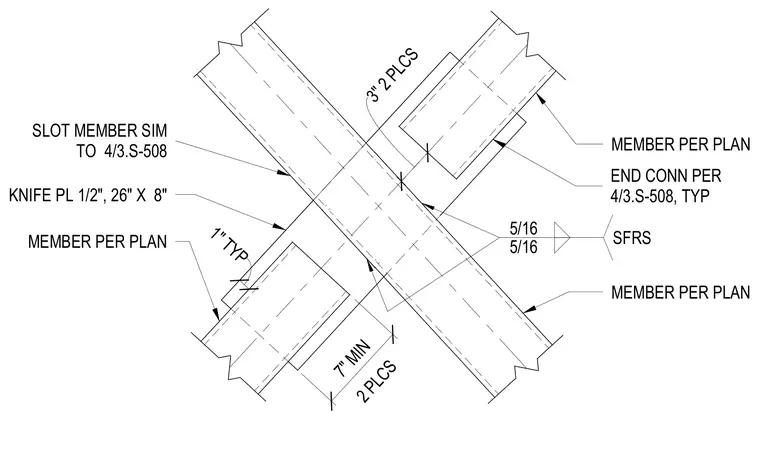

The intersecting structural members connect via a one-half-inch thick knife plate measuring twenty-six inches by eight inches, detailed with two places. The primary structural member is slotted to receive the plate, matching detail specifications. Five-sixteenth-inch fillet welds secure the connection at the intersection. End connections are sized per plan requirements.
MEMBER PER PLAN KNIFE PL 1/2", 26" X 8" 2 PLCS 7" MIN SLOT MEMBER SIM TO 4/3.S-508 MEMBER PER PLAN 3" 2 PLCS 5/16 5/16 SFRS MEMBER PER PLAN END CONN PER 4/3.S-508, TYP 1" TYP
