An insulated steel sectional door operates within a three-inch heavy-duty track mounted adjacent to a structural jamb. A three-eighths-inch bent plate jamb guard extends to four feet high and is secured to the wall with half-inch diameter wedge anchors spaced at twenty-four inches on center. The jamb guard is finished with two coats of safety yellow gloss enamel paint. A weather seal is provided all around, and the dead bolt latch is located six inches above the top of the jamb guard.

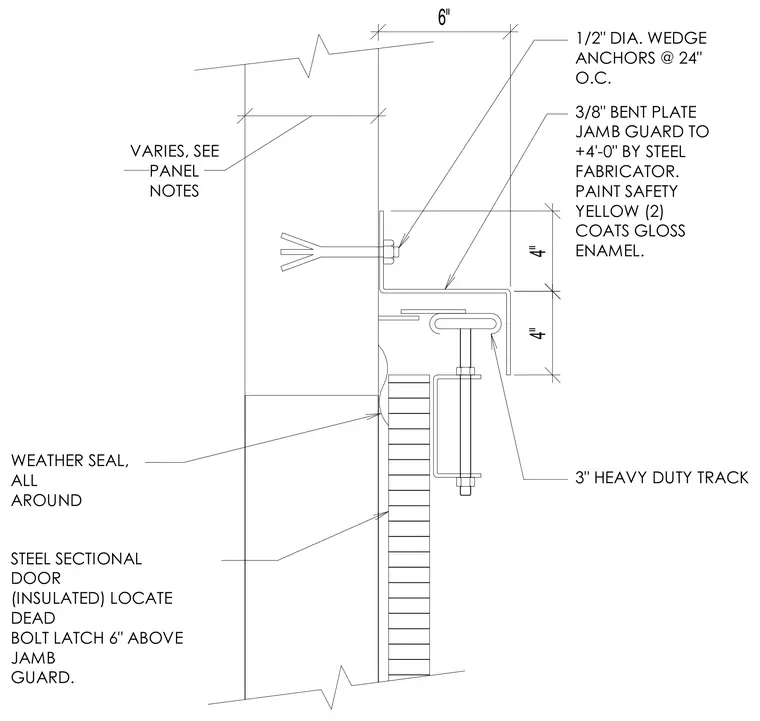

VARIES, SEE PANEL NOTES 4" 4" 6" 1/2" DIA. WEDGE ANCHORS @ 24" O.C. 3/8" BENT PLATE JAMB GUARD TO +4'-0" BY STEEL FABRICATOR. PAINT SAFETY YELLOW (2) COATS GLOSS ENAMEL. 3" HEAVY DUTY TRACK STEEL SECTIONAL DOOR (INSULATED) LOCATE DEAD BOLT LATCH 6" ABOVE JAMB GUARD. WEATHER SEAL, ALL AROUND
