Architectural · A-BEP6T

Sloped Curtainwall At Shelf

Materials

Elements

Columns Beams Walls Curtain Walls Insulation Connections / Plates

About this detail

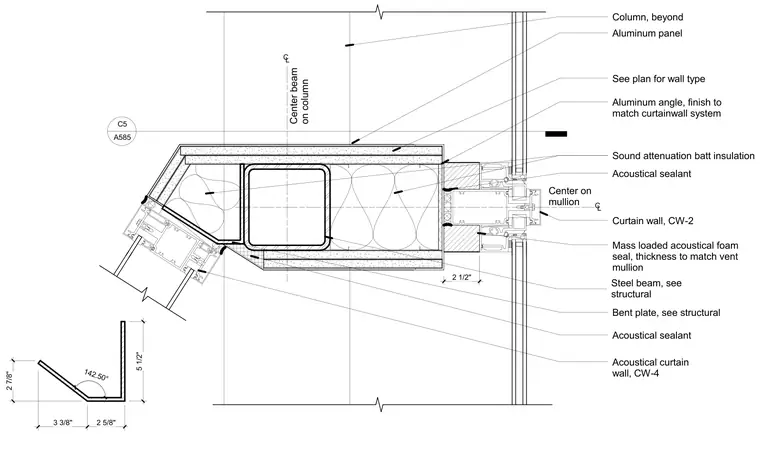

A sloped curtain wall transition occurs at a structural steel beam and column condition. The assembly incorporates an aluminum angle with a finish matching the curtain wall system, backed by sound attenuation batt insulation and acoustical sealant. A bent plate interfaces with the structural steel beam, while mass loaded acoustical foam seals provide sound mitigation at the vent mullion. Curtain wall types CW-2 and CW-4 integrate with aluminum panels and a supplementary bent plate profile detailed at one hundred forty-two and a half degrees.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
