This interior partition wall assembly is framed with eight-inch metal studs, with stud spacing coordinated per the structural drawings. The cavity contains sound attenuation batt insulation to reduce noise transfer between spaces. A half-inch backer board is applied to the framing face to receive the final wall finish specified in the finish schedule.

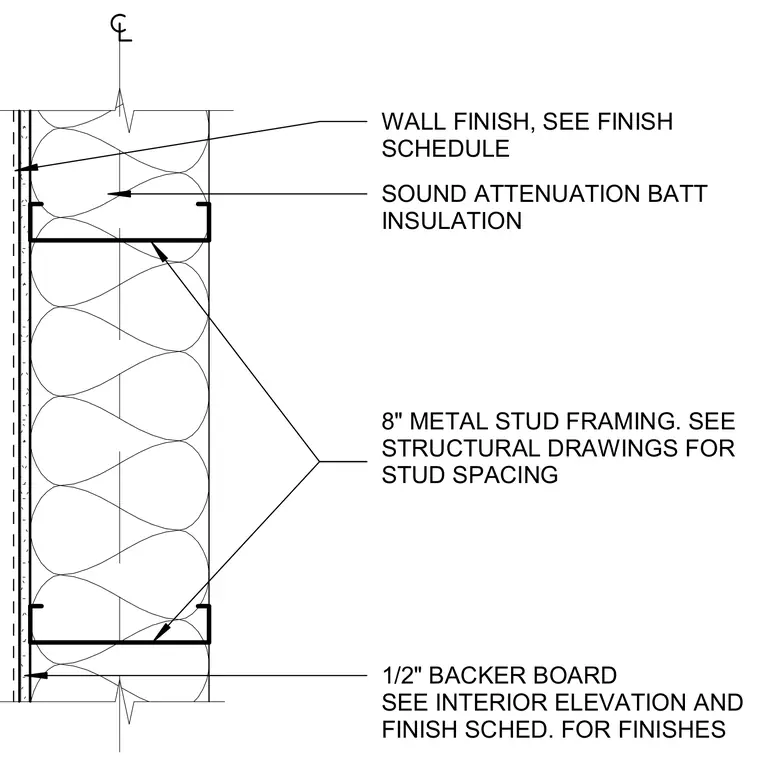

8" METAL STUD FRAMING. SEE STRUCTURAL DRAWINGS FOR STUD SPACING 1/2" BACKER BOARD SEE INTERIOR ELEVATION AND FINISH SCHED. FOR FINISHES SOUND ATTENUATION BATT INSULATION WALL FINISH, SEE FINISH SCHEDULE
