Control joints are spaced at a maximum of ten to fifteen feet intervals. Construction joints are to be located per structural recommendations. Refer to structural details for specific control joint requirements.

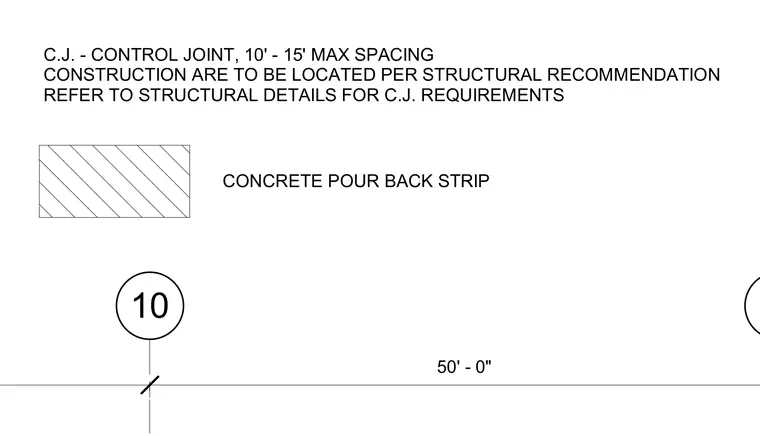

11 10 50' - 0" C.J. - CONTROL JOINT, 10' - 15' MAX SPACING CONSTRUCTION ARE TO BE LOCATED PER STRUCTURAL RECOMMENDATION REFER TO STRUCTURAL DETAILS FOR C.J. REQUIREMENTS CONCRETE POUR BACK STRIP
