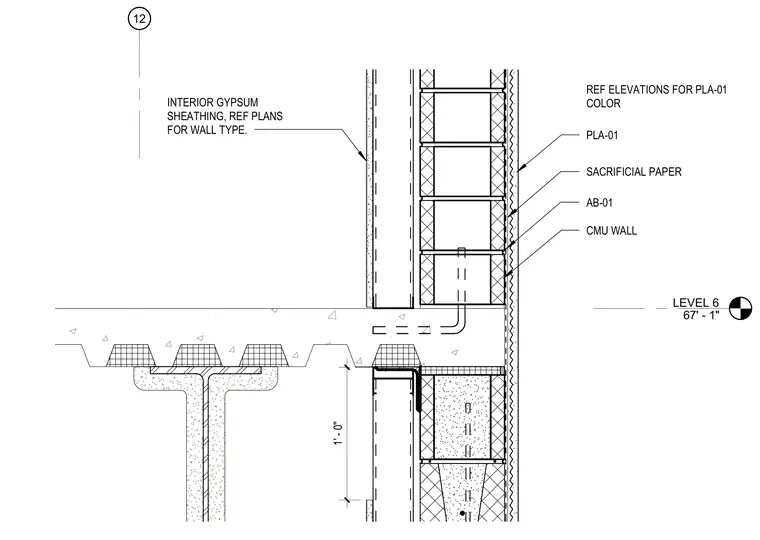

An exterior cement plaster finish designated as PLA-01 applies over sacrificial paper and an air/vapor barrier AB-01 on a concrete masonry unit wall. The concrete masonry wall terminates at a reinforced concrete floor slab supported by a steel beam. The interior side receives interior gypsum sheathing over metal framing, with the wall type referenced on the floor plans.
LEVEL 6 67' - 1" 12 1' - 0" CMU WALL AB-01 PLA-01 INTERIOR GYPSUM SHEATHING, REF PLANS FOR WALL TYPE. SACRIFICIAL PAPER REF ELEVATIONS FOR PLA-01 COLOR
