Stair treads feature a two-inch wide solid color contrasting stripe placed a maximum of one inch from the edge of the tread. Handrails maintain a height of thirty-four to thirty-eight inches above the nosing and extend with a twelve-inch minimum return to the wall or newel post. Closed risers and slip-resistant treads are required, with contrasting striping applied to the top and bottom treads of interior stairs and all treads on exterior stairs.

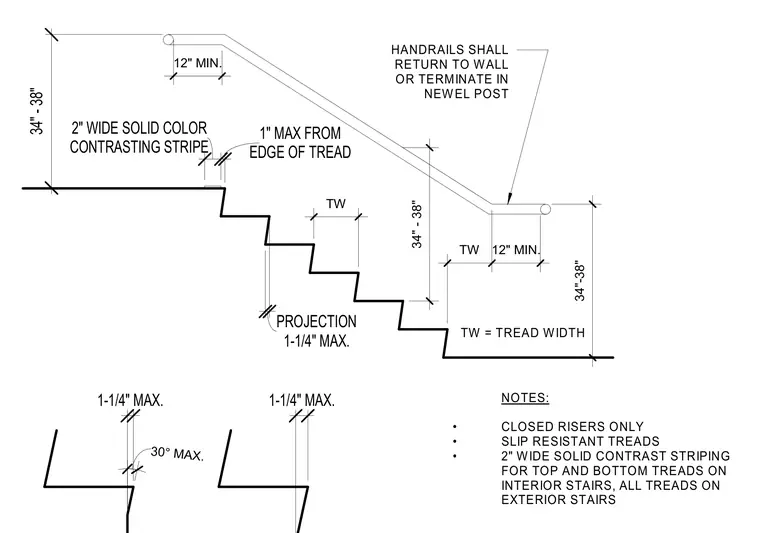

TW = TREAD WIDTH HANDRAILS SHALL RETURN TO WALL OR TERMINATE IN NEWEL POST 12" MIN. 34" - 38" NOTES: • CLOSED RISERS ONLY • SLIP RESISTANT TREADS • 2" WIDE SOLID CONTRAST STRIPING FOR TOP AND BOTTOM TREADS ON INTERIOR STAIRS, ALL TREADS ON EXTERIOR STAIRS CONTRASTING STRIPE 2" WIDE SOLID COLOR EDGE OF TREAD 1" MAX FROM TW 1-1/4" MAX. PROJECTION 34" - 38" TW 12" MIN. 1-1/4" MAX. 1-1/4" MAX. 30° MAX. 34"-38"
