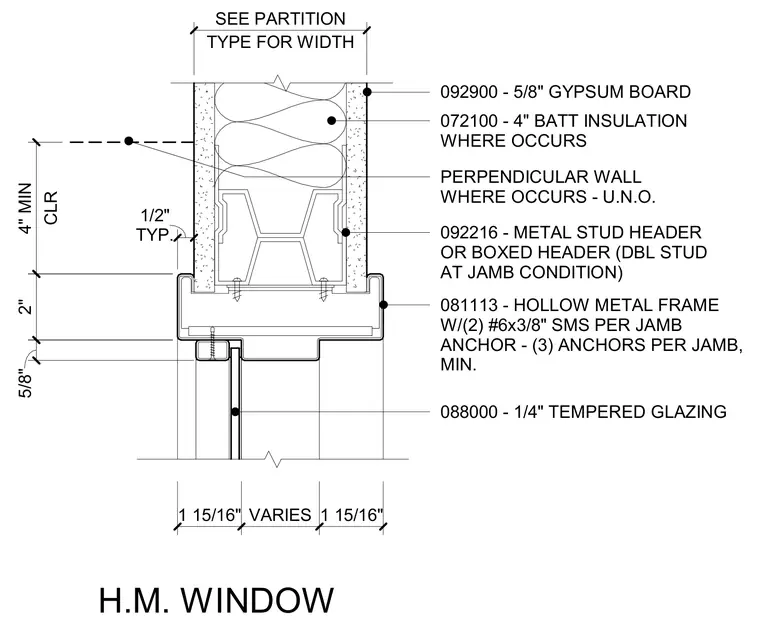

A hollow metal window head and jamb assembly is installed within a cold-formed metal stud partition. The framing consists of a metal stud header or boxed header with double studs at the jamb condition, finished with five-eighths inch gypsum board on both sides and four-inch batt insulation where required. A hollow metal frame is secured to the framing using two number six by three-eighths-inch sheet metal screws per jamb anchor, with a minimum of three anchors per jamb. One-quarter-inch tempered glazing is set within the frame with a typical one and fifteen-sixteenths-inch dimension.
2" 092216 - METAL STUD HEADER OR BOXED HEADER (DBL STUD AT JAMB CONDITION) 081113 - HOLLOW METAL FRAME W/(2) #6x3/8" SMS PER JAMB ANCHOR - (3) ANCHORS PER JAMB, MIN. 092900 - 5/8" GYPSUM BOARD CLR 4" MIN PERPENDICULAR WALL WHERE OCCURS - U.N.O. 088000 - 1/4" TEMPERED GLAZING 1 15/16" VARIES 1 15/16" TYP. 1/2" TYPE FOR WIDTH SEE PARTITION 5/8" 072100 - 4" BATT INSULATION WHERE OCCURS H.M. WINDOW
