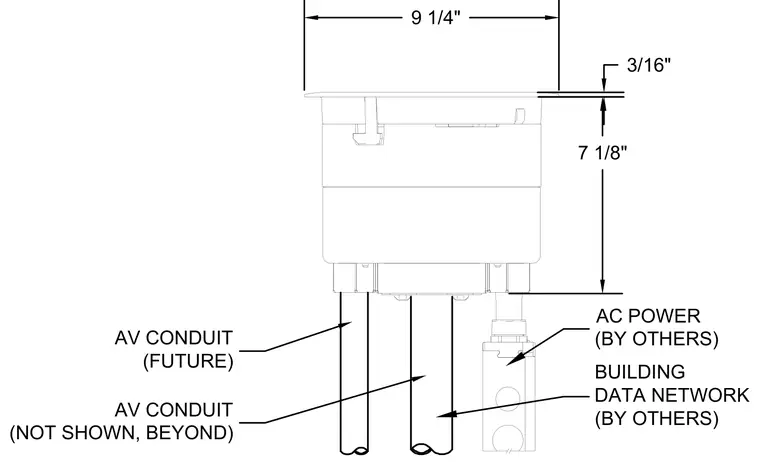

A floor box assembly with exterior dimensions measuring nine and one-quarter inches wide by seven and one-eighth inches high, featuring a three-sixteenth-inch flange. Conduits connect to the underside including future audiovisual conduit, audiovisual conduit located beyond, building data network lines by others, and AC power lines by others.
9 1/4" 3/16" 7 1/8" AC POWER (BY OTHERS) AV CONDUIT (NOT SHOWN, BEYOND) BUILDING DATA NETWORK (BY OTHERS) AV CONDUIT (FUTURE)
