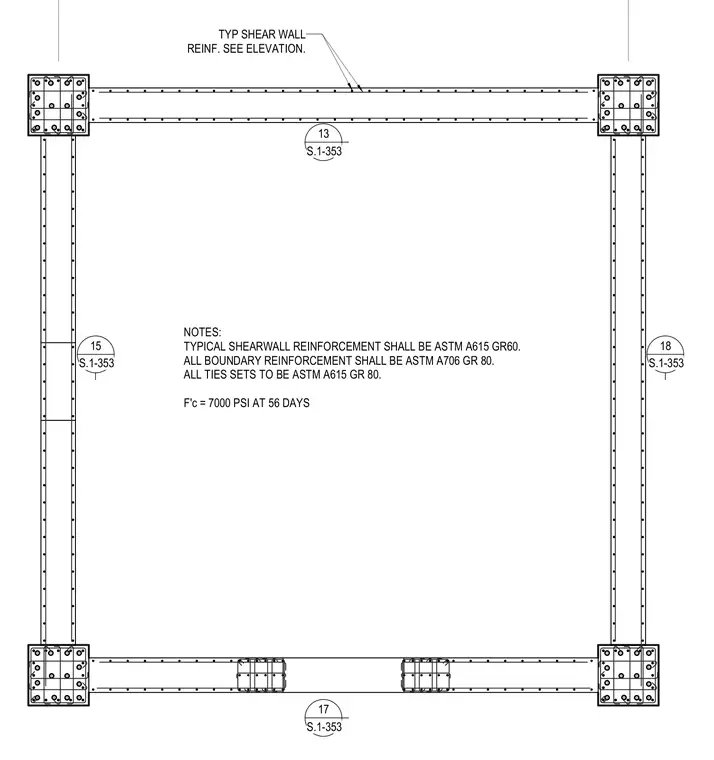

Typical shear wall reinforcement consists of ASTM A615 Grade 60 steel, while all boundary reinforcement is specified as ASTM A706 Grade 80. All tie sets are constructed using ASTM A615 Grade 80 reinforcement. The concrete mix design specifies a compressive strength of seven thousand PSI at fifty-six days. Shear wall reinforcement is detailed further per the associated elevation drawings.
NOTES: TYPICAL SHEARWALL REINFORCEMENT SHALL BE ASTM A615 GR60. ALL BOUNDARY REINFORCEMENT SHALL BE ASTM A706 GR 80. ALL TIES SETS TO BE ASTM A615 GR 80. F'c = 7000 PSI AT 56 DAYS 13 S.1-353 17 S.1-353 15 S.1-353 18 S.1-353 TYP SHEAR WALL REINF. SEE ELEVATION.
