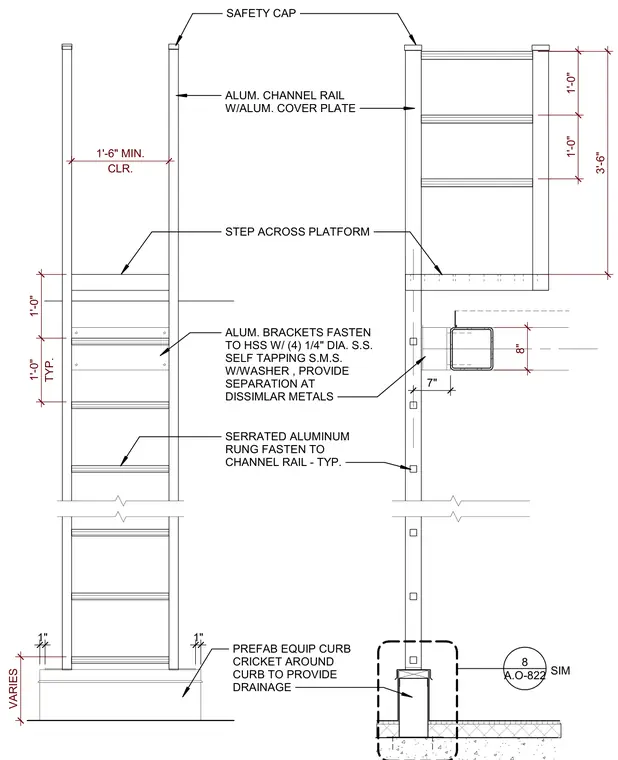

An aluminum ladder connects to a hollow structural section support framing a roof catwalk platform. The assembly features aluminum channel rails with cover plates, serrated aluminum rungs, and a safety cap at the top. Aluminum brackets attach the side rails to the structural steel member using four quarter-inch diameter stainless steel self-tapping sheet metal screws with washers, with separation provided between dissimilar metals. The ladder includes a step-across platform at the top with a three-foot six-inch high handrail assembly spaced at one-foot increments. The bottom of the ladder extends down to a prefabricated equipment curb with a cricket around it for drainage.
8" 3'-6" 1'-0" 1'-0" SAFETY CAP ALUM. CHANNEL RAIL W/ALUM. COVER PLATE STEP ACROSS PLATFORM SERRATED ALUMINUM RUNG FASTEN TO CHANNEL RAIL - TYP. ALUM. BRACKETS FASTEN TO HSS W/ (4) 1/4" DIA. S.S. SELF TAPPING S.M.S. W/WASHER , PROVIDE SEPARATION AT DISSIMLAR METALS TYP. 1'-0" 1'-0" VARIES CLR. 1'-6" MIN. 7" A.O-822 8 1" 1" PREFAB EQUIP CURB CRICKET AROUND CURB TO PROVIDE DRAINAGE SIM
