Jib Crane Column Top Connection and Bracing

Materials

Steel

Elements

Beams Walls

Connections

HSS Connection

About this detail

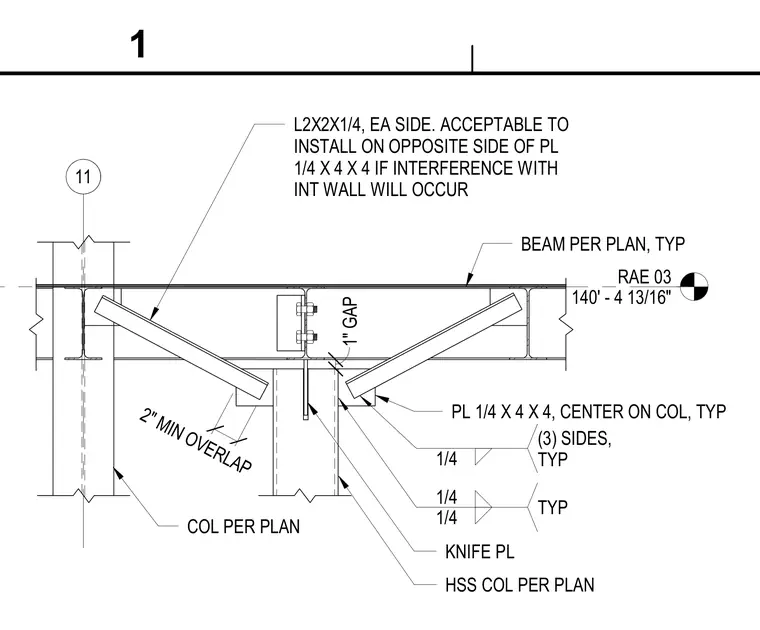

A jib crane column top connection utilizes diagonal bracing angles, a knife plate, and a centered plate welded to an HSS column and structural beam. The assembly incorporates L2x2x1/4 angles on each side with a two-inch minimum overlap, which may be installed on the opposite side of the 1/4-inch by 4-inch by 4-inch plate if interior wall interference occurs. A one-inch gap separates the connecting elements, detailed with typical one-quarter-inch fillet welds on three sides. The structural steel members, including the column and beam, are sized per plan.
