A quarter-inch by two-inch steel slide hasp measuring twelve inches long is welded to the steel panel frame. A quarter-inch by two-inch steel plate loop is centered and welded to the steel panel frame to receive a Knox padlock and a district-provided padlock. All connections are welded and ground smooth, and the steel is hot-dip galvanized post-fabrication and painted per specifications.

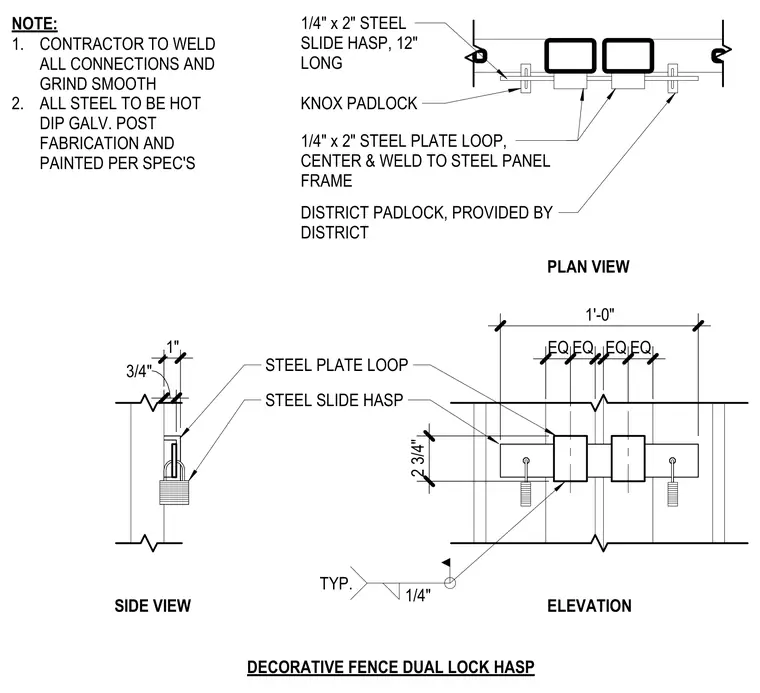

1/4" x 2" STEEL SLIDE HASP, 12" LONG PLAN VIEW SIDE VIEW DECORATIVE FENCE DUAL LOCK HASP 1. 2. NOTE: CONTRACTOR TO WELD ALL CONNECTIONS AND GRIND SMOOTH ALL STEEL TO BE HOT DIP GALV. POST FABRICATION AND PAINTED PER SPEC'S 1/4" x 2" STEEL PLATE LOOP, CENTER & WELD TO STEEL PANEL FRAME DISTRICT PADLOCK, PROVIDED BY DISTRICT KNOX PADLOCK ELEVATION 2 3/4" 1'-0" EQ EQ EQ EQ 1" 3/4" STEEL PLATE LOOP STEEL SLIDE HASP 1/4" TYP.
