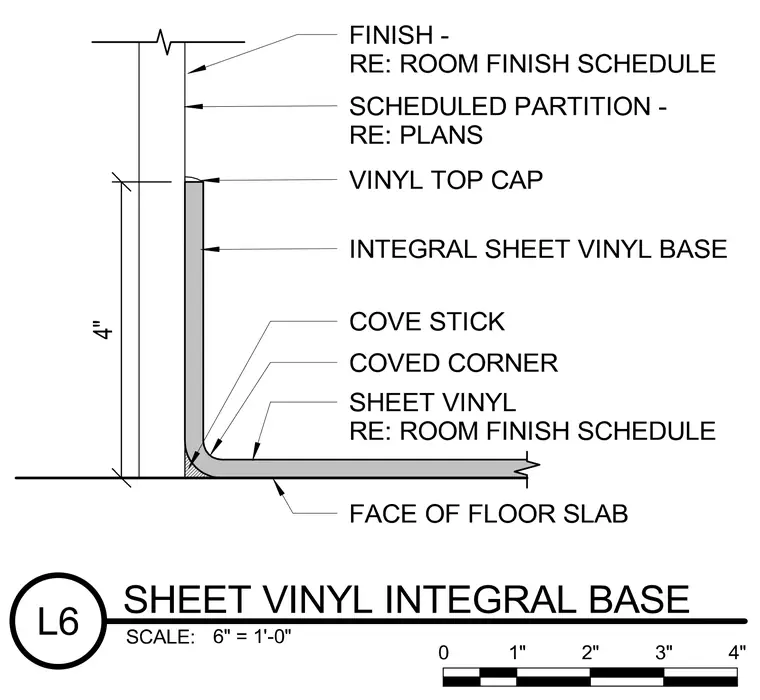

An integral sheet vinyl base extends four inches up a scheduled partition finished per the room finish schedule, terminating at a vinyl top cap. The flooring consists of sheet vinyl over the face of the floor slab, turning upward at the wall junction over a cove stick to form a coved corner. The partition finish and flooring specifications refer to the room finish schedule and floor plans.
