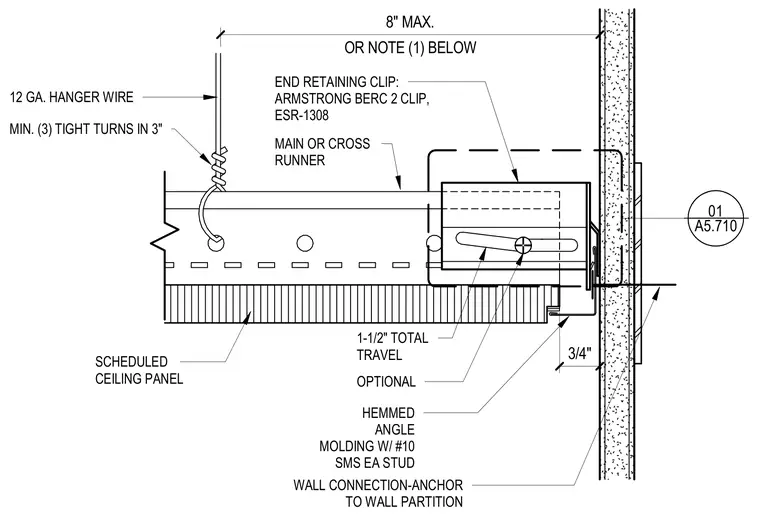

An acoustical ceiling suspension system terminates at an unattached wall partition with a hemmed angle molding secured to each stud with number 10 sheet metal screws. A main or cross runner extends to the wall and is supported near the perimeter by a twelve-gauge hanger wire with a minimum of three tight turns in three inches. An optional Armstrong BERC 2 clip, ESR-1308, provides one and one-half inches of total travel capacity at the wall connection. Scheduled ceiling panels complete the interior finish up to the perimeter molding.
MIN. (3) TIGHT TURNS IN 3" 12 GA. HANGER WIRE MAIN OR CROSS RUNNER HEMMED ANGLE MOLDING W/ #10 SMS EA STUD WALL CONNECTION-ANCHOR TO WALL PARTITION SCHEDULED CEILING PANEL OR NOTE (1) BELOW 8" MAX. OPTIONAL END RETAINING CLIP: ARMSTRONG BERC 2 CLIP, ESR-1308 3/4" 1-1/2" TOTAL TRAVEL ________ ________ 01 A5.710
