Splayed seismic bracing wires secure acoustical ceiling suspension systems to joist web members and bottom chords or the deck above. Bracing wires are installed parallel to joists per International Building Code standards and left uninstalled perpendicular to joists. Wire connections feature a minimum of three turns with a one-and-one-half-inch run. Acoustical ceiling suspension wires are tested for four hundred pounds.

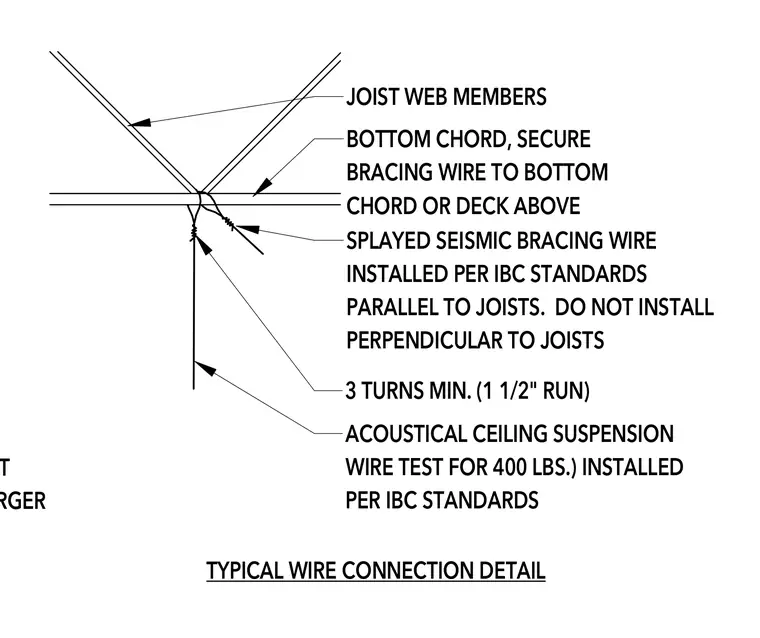

SEISMIC EXPANSION JOINT SEPARATING CEILINGS LARGER JOIST WEB MEMBERS BOTTOM CHORD, SECURE BRACING WIRE TO BOTTOM CHORD OR DECK ABOVE SPLAYED SEISMIC BRACING WIRE INSTALLED PER IBC STANDARDS PARALLEL TO JOISTS. DO NOT INSTALL PERPENDICULAR TO JOISTS 3 TURNS MIN. (1 1/2" RUN) ACOUSTICAL CEILING SUSPENSION WIRE TEST FOR 400 LBS.) INSTALLED PER IBC STANDARDS TYPICAL WIRE CONNECTION DETAIL
