Architectural · A-BCS6C

Stair Handrail Section at Partition

Materials

Elements

Walls Partitions Stairs Railings / Guards Connections / Plates

About this detail

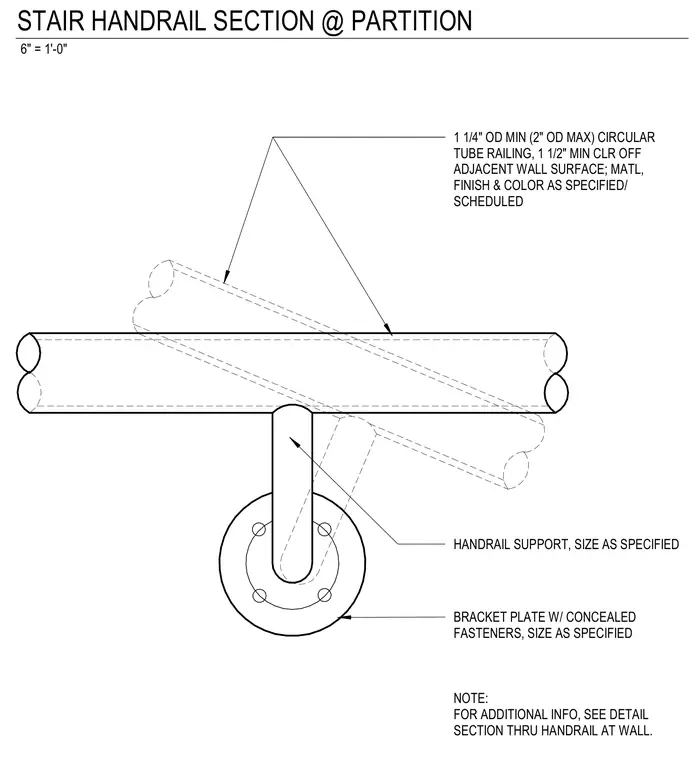

A wall-mounted stair handrail assembly incorporates a 1-1/4-inch minimum to 2-inch maximum outside diameter circular tube railing. The railing connects to the adjacent wall surface with a handrail support bracket of specified size, maintaining a 1-1/2-inch minimum clearance from the wall surface. The bracket plate utilizes concealed fasteners and is sized per specifications, with material, finish, and color scheduled separately.
