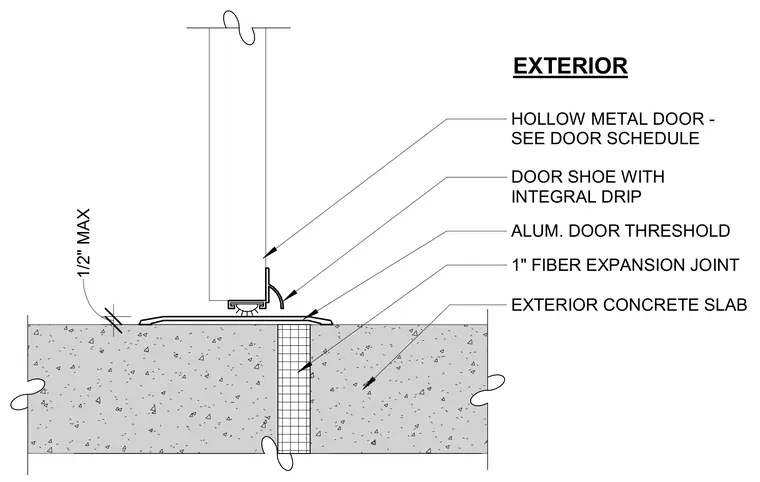

An exterior hollow metal door connects to an aluminum door threshold with an integral drip and door shoe, mounted over an exterior concrete slab. A one-inch fiber expansion joint is set directly beneath the threshold within the concrete slab. Maximum clearance is specified at one-half inch.
EXTERIOR HOLLOW METAL DOOR - SEE DOOR SCHEDULE DOOR SHOE WITH INTEGRAL DRIP ALUM. DOOR THRESHOLD 1" FIBER EXPANSION JOINT EXTERIOR CONCRETE SLAB 1/2" MAX
