Architectural · A-BCQVQ

Clerestory Sill at Storefront and Living Wall

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Walls Storefronts Facades / Cladding Waterproofing / Flashing Insulation

Connections

HSS Connection

About this detail

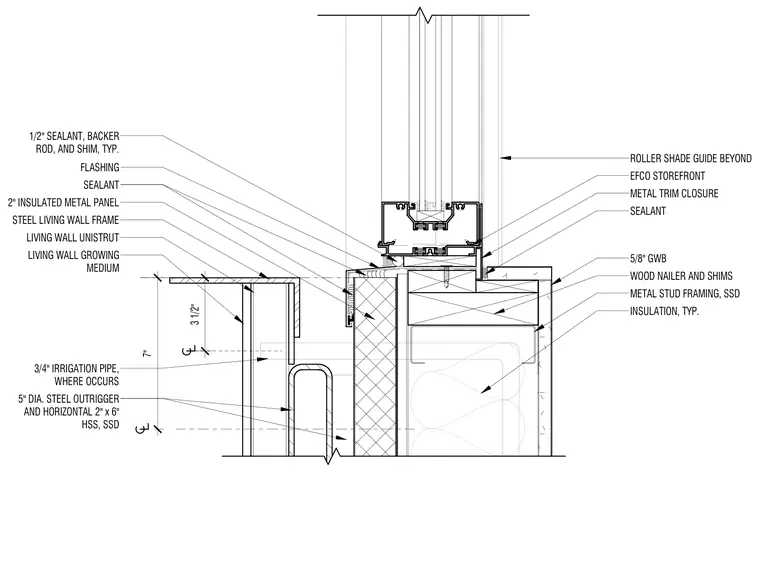

A clerestory sill connection joins an Efco storefront window to an exterior living wall assembly. The storefront frame is anchored over metal stud framing backed by a wood nailer and five-eighths-inch gypsum wallboard, sealed with typical half-inch sealant, backer rod, and shims. Exterior insulation is protected by a two-inch insulated metal panel and metal trim closure flashing. A steel living wall frame features a Unistrut channel supporting a growing medium, horizontal two-by-six hollow structural section members, and a five-inch-diameter steel outrigger. A three-quarter-inch irrigation pipe is accommodated within the living wall assembly where required.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
