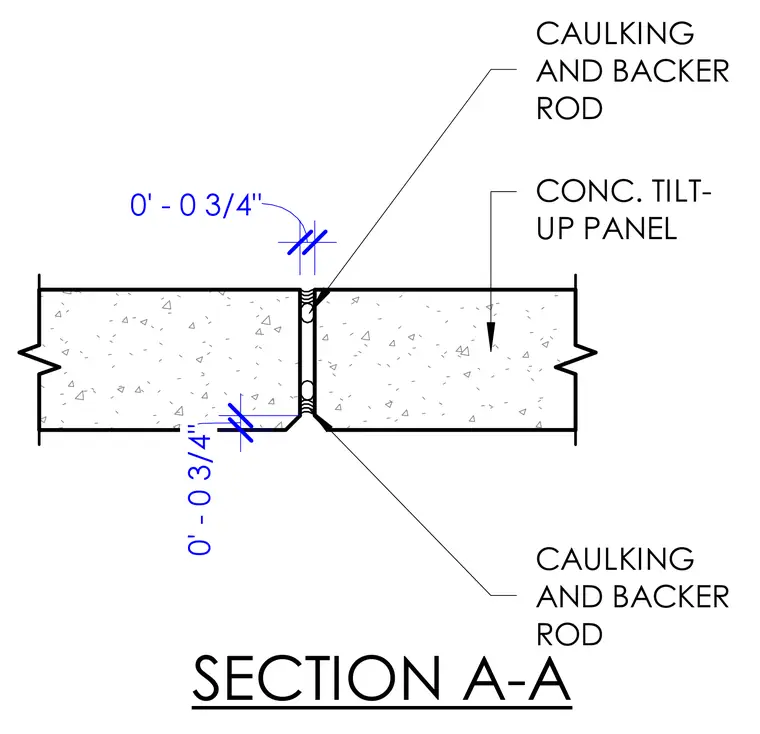

Two concrete tilt-up panels meet at a vertical joint measuring zero feet, three-quarters of an inch wide. A cylindrical backer rod is recessed into the joint gap and sealed with exterior caulking. The joint profile features chamfered panel edges on the exterior face.
SECTION A-A CONC. TILT- UP PANEL 0' - 0 3/4" 0' - 0 3/4" CAULKING AND BACKER ROD CAULKING AND BACKER ROD
