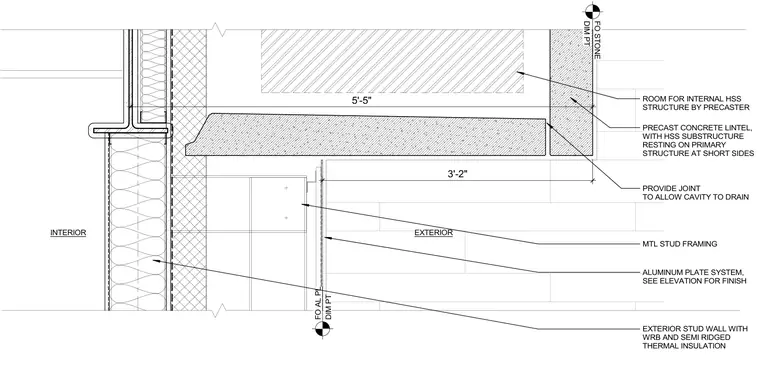

An exterior wall assembly featuring a precast concrete lintel with an internal hollow structural section substructure resting on the primary structure at short sides, providing room for the internal hollow structural section structure by the precaster. The assembly includes a drainage joint to allow the cavity to drain. An exterior stud wall with water-resistive barrier and semi-rigid thermal insulation supports the exterior metal stud framing. An aluminum plate system is attached, with the finish coordinated per elevation.
PRECAST CONCRETE LINTEL, WITH HSS SUBSTRUCTURE RESTING ON PRIMARY STRUCTURE AT SHORT SIDES ROOM FOR INTERNAL HSS STRUCTURE BY PRECASTER PROVIDE JOINT TO ALLOW CAVITY TO DRAIN EXTERIOR INTERIOR 5'-5" FO AL PL DIM PT EXTERIOR STUD WALL WITH WRB AND SEMI RIDGED THERMAL INSULATION ALUMINUM PLATE SYSTEM, SEE ELEVATION FOR FINISH MTL STUD FRAMING FO STONE DIM PT 3'-2"
