Architectural · A-BC994

Roof Edge Gutter and Reglet Flashing Detail

Materials

Timber / Wood Metal (misc.)

Elements

Walls Roofs Decks Waterproofing / Flashing Insulation Drainage Site / Paving Anchors / Embeds Roof / Floor Openings

Connections

Welded Connection Deck Attachment

About this detail

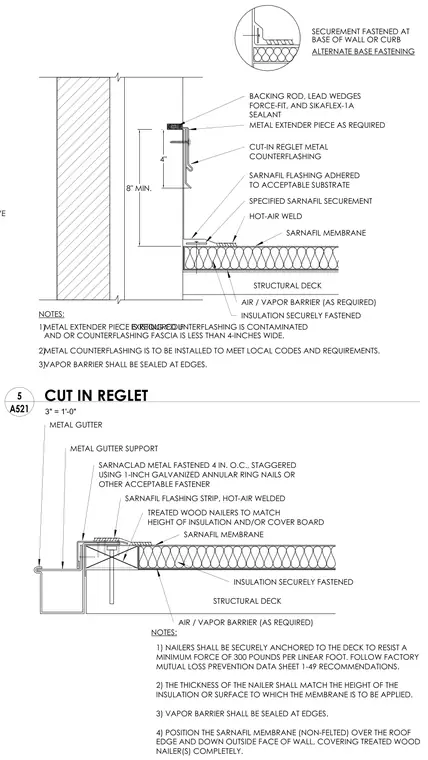

The structural deck is covered with an optional air and vapor barrier and securely fastened insulation. Treated wood nailers match the height of the insulation and support the roof edge, anchored to resist a minimum force of 300 pounds per linear foot. The Sarnafil membrane extends over the roof edge and is secured with Sarnaclad metal fastened at 4 inches on center staggered using 1-inch galvanized annular ring nails, with a Sarnafil flashing strip hot-air welded in place. A metal gutter is attached with metal gutter supports at the edge. A cut-in reglet metal counterflashing is sealed with a backing rod, lead wedges force-fit, and Sikaflex-1A sealant.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
