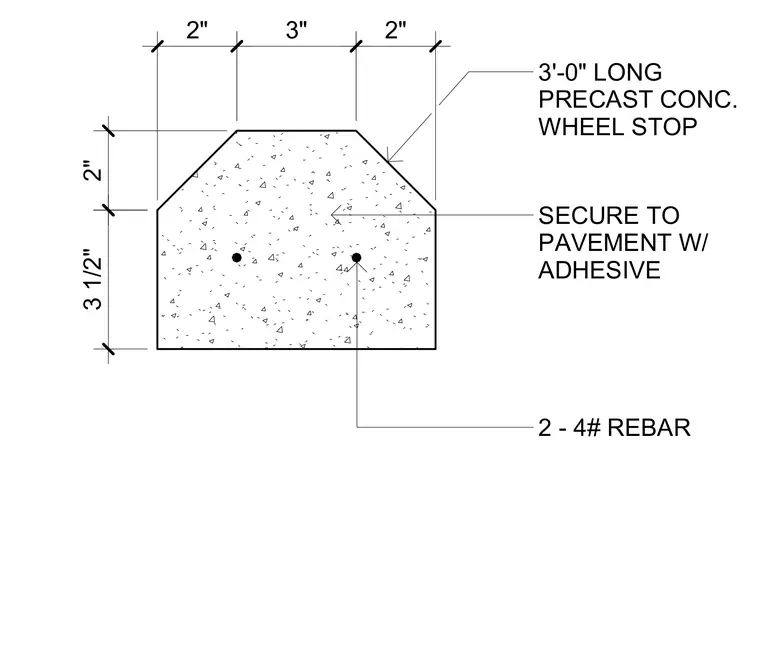

A three-foot-long precast concrete wheel stop is reinforced with two number four rebars and secured to the pavement using adhesive. Dimensions define the profile with a height of three and one-half inches plus two inches and a top width of three inches.
3 1/2" 2" 2" 3" 2" 2 - 4# REBAR SECURE TO PAVEMENT W/ ADHESIVE 3'-0" LONG PRECAST CONC. WHEEL STOP
