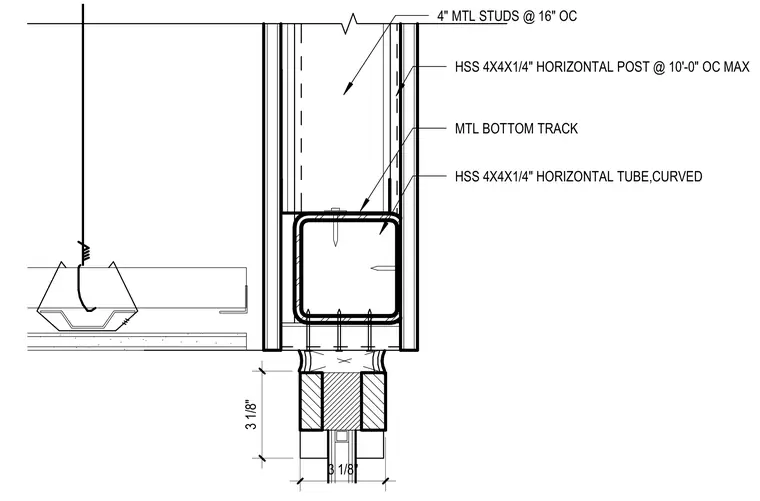

A curved 4x4x1/4-inch hollow structural section horizontal tube supports a metal bottom track and four-inch metal studs spaced at 16 inches on center. A hollow structural section 4x4x1/4-inch horizontal post is spaced at a maximum of 10 feet on center. Vertical dimensions indicate a 3-1/8 inch spacing at the storefront head condition.
HSS 4X4X1/4" HORIZONTAL TUBE,CURVED MTL BOTTOM TRACK 4" MTL STUDS @ 16" OC HSS 4X4X1/4" HORIZONTAL POST @ 10'-0" OC MAX 3 1/8" 3 1/8"
