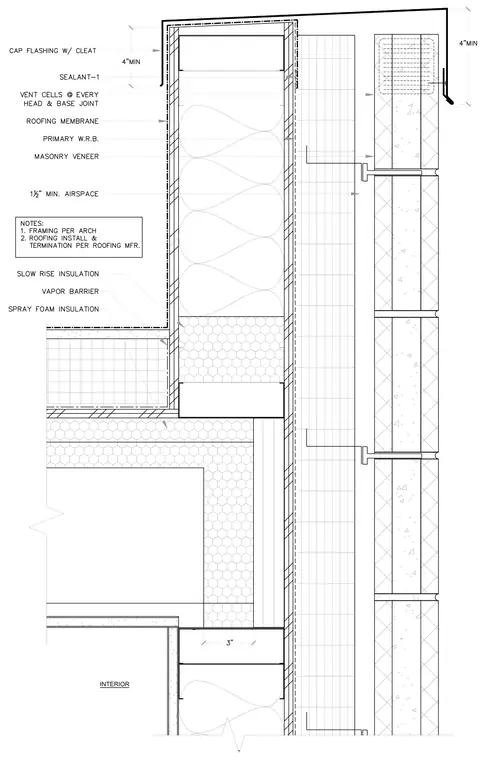

This wall section details a parapet assembly with a concrete masonry unit veneer and a continuous metal cap flashing with a cleat. The exterior facade incorporates a primary water-resistive barrier, masonry veneer, and a one-and-one-half-inch minimum airspace with vent cells at every head and base joint. The roofing membrane extends up and over the parapet, backed by slow-rise insulation, a vapor barrier, and spray foam insulation. Framing is installed per the architectural requirements, and roofing installation and termination comply with the roofing manufacturer specifications.
