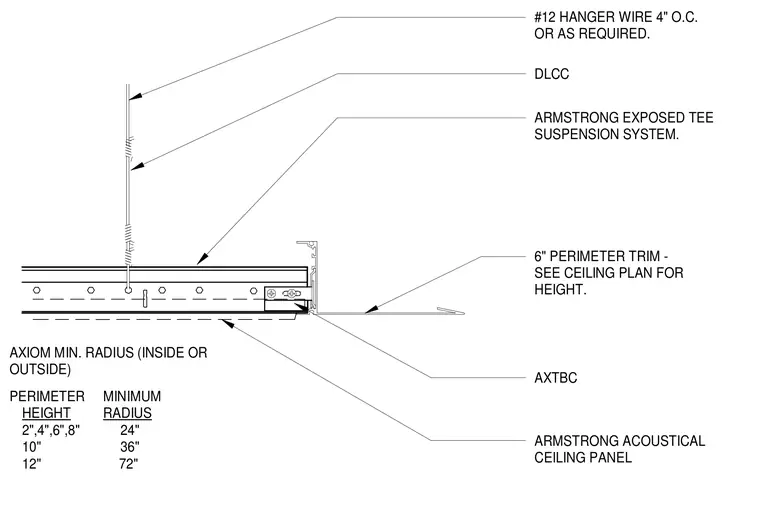

An Armstrong acoustical ceiling panel terminates at a six-inch perimeter trim supported by an exposed tee suspension system. The grid is suspended using number twelve hanger wire spaced at four inches on center or as required. The Axiom perimeter trim integrates with the ceiling panels, and a minimum radius schedule specifies allowable curve radii for various perimeter heights.
AXTBC ARMSTRONG ACOUSTICAL CEILING PANEL 6" PERIMETER TRIM - SEE CEILING PLAN FOR HEIGHT. ARMSTRONG EXPOSED TEE SUSPENSION SYSTEM. DLCC #12 HANGER WIRE 4" O.C. OR AS REQUIRED. AXIOM MIN. RADIUS (INSIDE OR OUTSIDE) PERIMETER MINIMUM HEIGHT RADIUS 2",4",6",8" 24" 10" 36" 12" 72"
