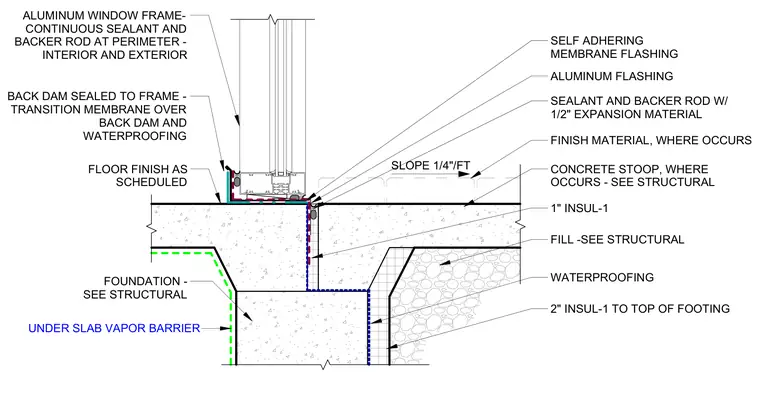

An exterior entrance stoop interfaces with a concrete foundation and an aluminum window frame. A concrete slab with a one-quarter inch per foot slope bears over structural fill and perimeter insulation, transitioning to a cast-in-place concrete foundation wall with waterproofing and an under-slab vapor barrier. The aluminum window frame sets on a continuous sealant and backer rod with a back dam, tied into a transition membrane and self-adhering flashing. A joint with one-half inch expansion material separates the stoop finish from the building threshold.
1" INSUL-1 2" INSUL-1 TO TOP OF FOOTING FLOOR FINISH AS SCHEDULED FILL -SEE STRUCTURAL CONCRETE STOOP, WHERE OCCURS - SEE STRUCTURAL FOUNDATION - SEE STRUCTURAL WATERPROOFING SLOPE 1/4"/FT ALUMINUM WINDOW FRAME- CONTINUOUS SEALANT AND BACKER ROD AT PERIMETER - INTERIOR AND EXTERIOR SEALANT AND BACKER ROD W/ 1/2" EXPANSION MATERIAL ALUMINUM FLASHING SELF ADHERING MEMBRANE FLASHING FINISH MATERIAL, WHERE OCCURS BACK DAM SEALED TO FRAME - TRANSITION MEMBRANE OVER BACK DAM AND WATERPROOFING UNDER SLAB VAPOR BARRIER
