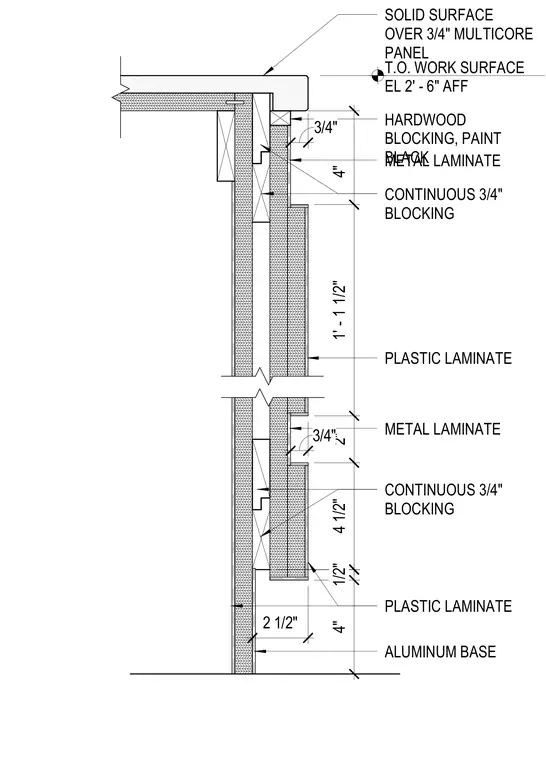

A solid surface countertop sits over a three-quarter-inch multicore panel at a work surface elevation of two feet six inches above finished floor. The casework front features continuous three-quarter-inch wood blocking, plastic laminate, metal laminate, and a painted black three-quarter-inch hardwood blocking reveal. The assembly terminates at the floor with an aluminum base.
CONTINUOUS 3/4" BLOCKING CONTINUOUS 3/4" BLOCKING SOLID SURFACE OVER 3/4" MULTICORE PANEL T.O. WORK SURFACE EL 2' - 6" AFF 4" 1' - 1 1/2" 2" 4 1/2" 4" 1/2" PLASTIC LAMINATE ALUMINUM BASE METAL LAMINATE METAL LAMINATE PLASTIC LAMINATE 2 1/2" 3/4" HARDWOOD BLOCKING, PAINT BLACK 3/4"
