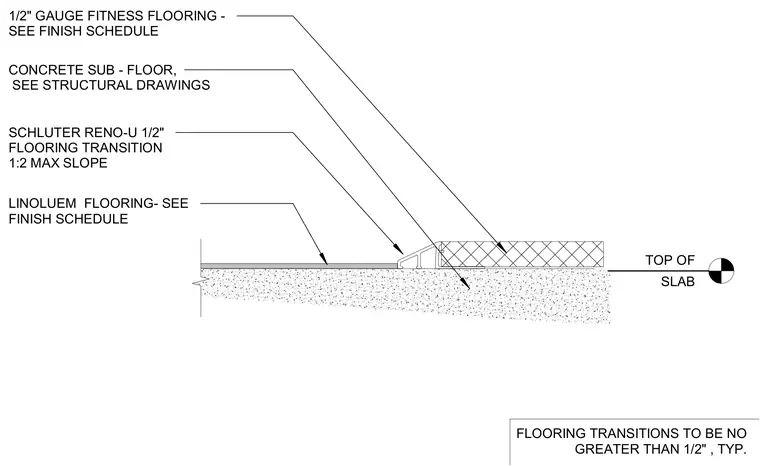

A Schluter-Reno-U one-half-inch flooring transition profile is anchored at the junction between linoleum flooring and one-half-inch gauge fitness flooring over a concrete subfloor. The transition profile provides a one-to-two maximum slope to accommodate the height difference between the two floor finishes. All flooring transitions are required to be no greater than one-half inch typically.
SLAB TOP OF SCHLUTER RENO-U 1/2" FLOORING TRANSITION 1:2 MAX SLOPE LINOLUEM FLOORING- SEE FINISH SCHEDULE CONCRETE SUB - FLOOR, SEE STRUCTURAL DRAWINGS 1/2" GAUGE FITNESS FLOORING - SEE FINISH SCHEDULE FLOORING TRANSITIONS TO BE NO GREATER THAN 1/2" , TYP.
