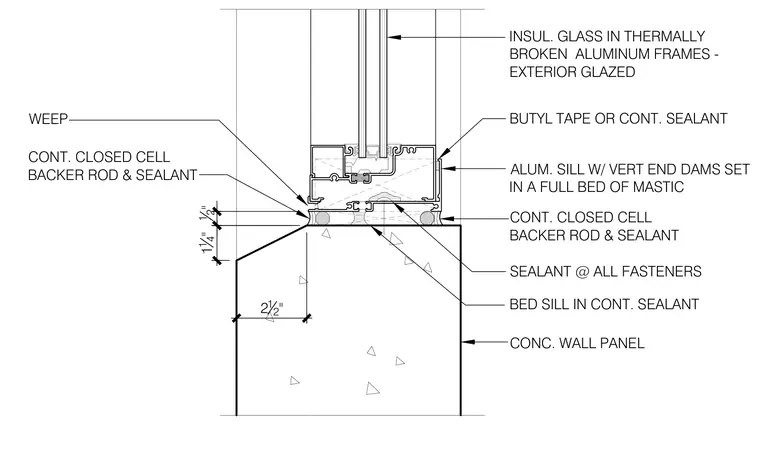

An exterior glazed thermally broken aluminum frame supports one-half inch insulating glass resting on a continuous aluminum sill. The sill features vertical end dams and is set in a full bed of mastic on a concrete wall panel. A continuous closed-cell backer rod and sealant joint seals the interface below the sill, and sealant is applied at all fasteners. Weep holes provide drainage through the sill assembly.
12 " 1 1 4 " INSUL. GLASS IN THERMALLY BROKEN ALUMINUM FRAMES - EXTERIOR GLAZED CONC. WALL PANEL BUTYL TAPE OR CONT. SEALANT CONT. CLOSED CELL BACKER ROD & SEALANT ALUM. SILL W/ VERT END DAMS SET IN A FULL BED OF MASTIC SEALANT @ ALL FASTENERS BED SILL IN CONT. SEALANT CONT. CLOSED CELL BACKER ROD & SEALANT WEEP 2 12 "
