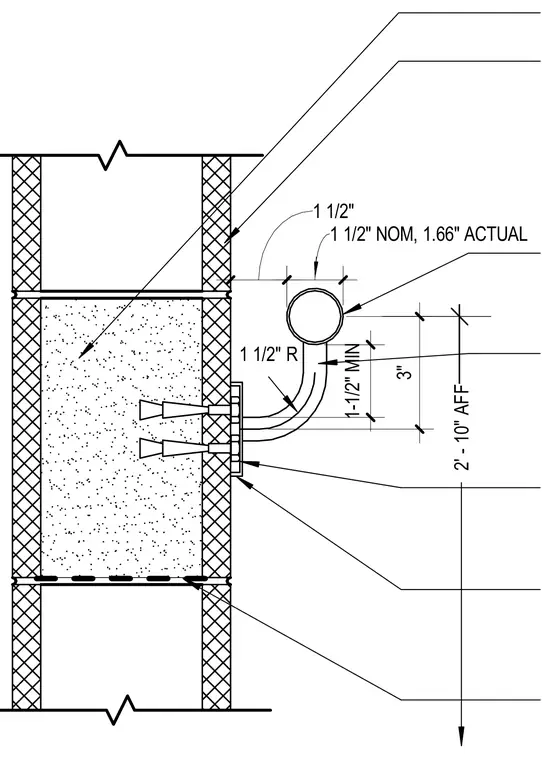

A tubular handrail is mounted to a reinforced concrete masonry unit partition wall using a curved bracket secured with expansion anchors. The handrail maintains a clearance of one and one-half inches from the wall surface and sits at a height of two feet ten inches above the finished floor. The support bracket features a one and one-half inch radius curve and provides a minimum of one and one-half inches of clearance underneath. The mounting plate is anchored directly into the grouted masonry core with heavy-duty anchors.
