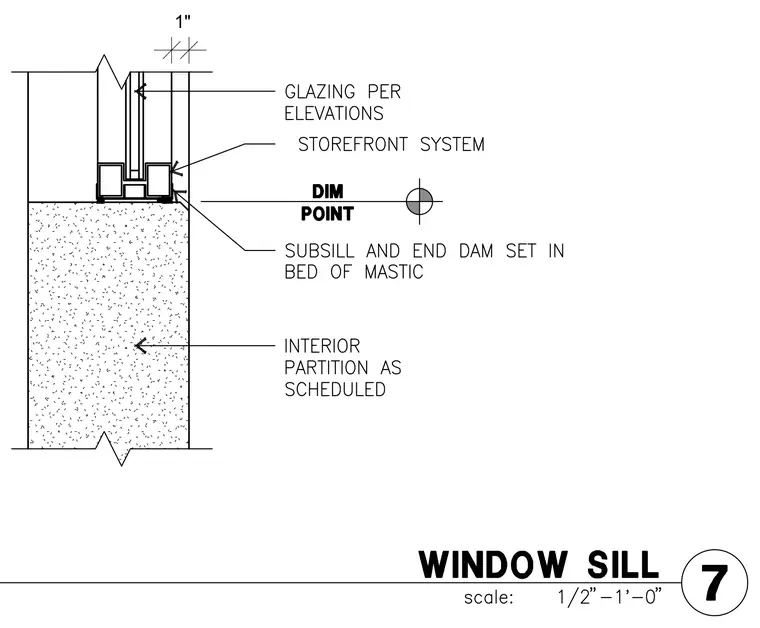

The storefront system sits atop an interior partition wall as scheduled, with glazing specified per elevations. A subsill and end dam are set in a bed of mastic on the partition top. A one-inch dimension point establishes the alignment of the framing relative to the wall face.
