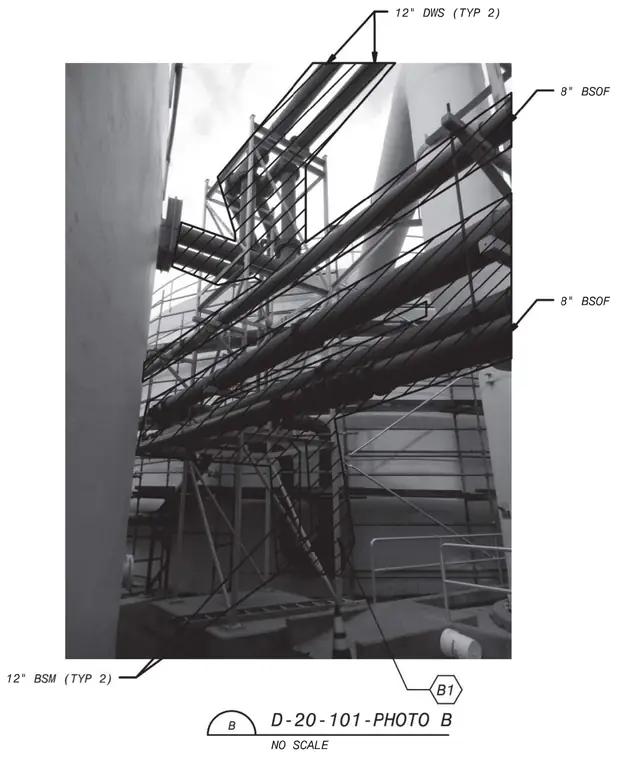

This photograph documents industrial piping installations supported on structural steel framing. The overhead runs include twelve-inch diameter piping with two typical locations, eight-inch diameter piping, and twelve-inch bottom support piping runs. Access scaffolding and structural supports frame the industrial process equipment and piping network.
12" DWS (TYP 2) 8" BSOF i V\ 8" BSOF 12" BSM (TYP 2) B1 D-20-101 -PHOTO B NO SCALE
