A single-ply membrane roofing system extends up the parapet wall over a compatible substrate, secured with a flat strap backing. The roof deck slopes toward the drain at one-quarter inch per foot. A hot-air weld seals the single-ply membrane flashing at the deck transition, maintaining a minimum height of eight inches at the wall.

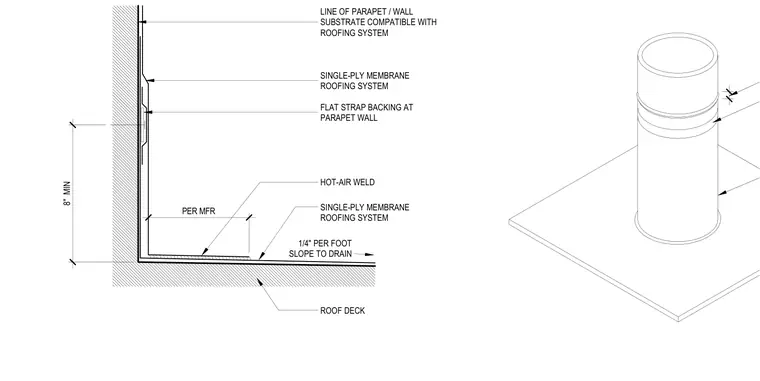

8" MIN LINE OF PARAPET / WALL SUBSTRATE COMPATIBLE WITH ROOFING SYSTEM SINGLE-PLY MEMBRANE ROOFING SYSTEM HOT-AIR WELD SINGLE-PLY MEMBRANE ROOFING SYSTEM ROOF DECK FLAT STRAP BACKING AT PARAPET WALL 1/4" PER FOOT SLOPE TO DRAIN PER MFR
