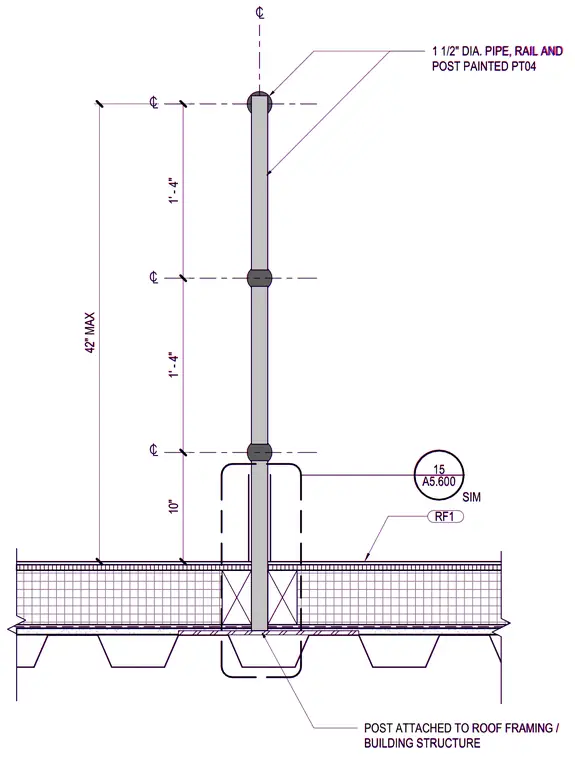

A 1 1/2-inch diameter pipe rail and post is finished with paint designation PT04 and attached to the roof framing and building structure. The post extends through the roof assembly with a maximum height of 42 inches, featuring rail spacing dimensions of 1 foot 4 inches between centerlines and a 10-inch base dimension above the roof finish RF1.
1' - 4" 1' - 4" 10" 1 1/2" DIA. PIPE, RAIL AND POST PAINTED PT04 RF1 ________ ________ 15 A5.600 42" MAX POST ATTACHED TO ROOF FRAMING / BUILDING STRUCTURE SIM 1' - 4" 1' - 4" 10" 1 1/2" DIA. PIPE, RAIL AND POST PAINTED PT04 RF1 ________ ________ 15 A5.600 42" MAX POST ATTACHED TO ROOF FRAMING / BUILDING STRUCTURE SIM
