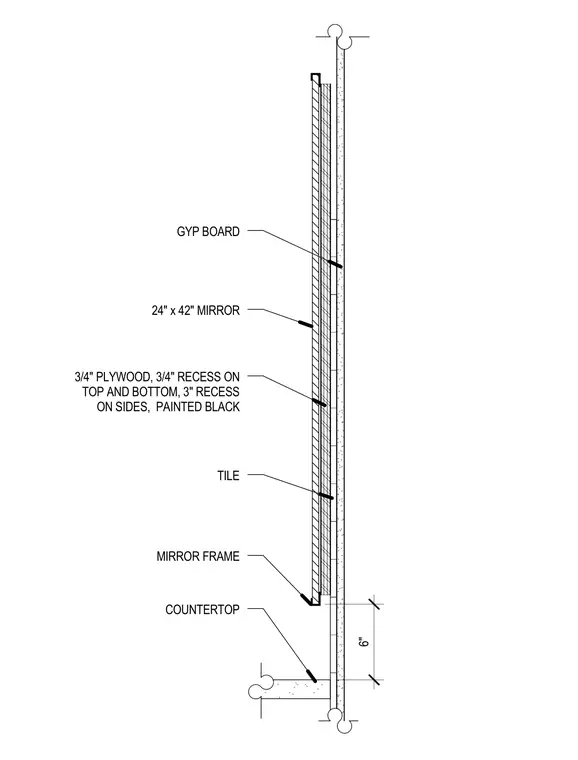

A recessed twenty-four by forty-two inch mirror mounts within a custom three-quarter-inch plywood frame. The plywood features a three-quarter-inch recess at the top and bottom and a three-inch recess on the sides, painted black to conceal edges. The mirror assembly installs against a tiled gypsum board partition wall located six inches above the countertop.
6" COUNTERTOP MIRROR FRAME 3/4" PLYWOOD, 3/4" RECESS ON TOP AND BOTTOM, 3" RECESS ON SIDES, PAINTED BLACK TILE GYP BOARD 24" x 42" MIRROR
