Architectural · A-B9XG5

Typical Stair Tread and Riser

Materials

Elements

About this detail

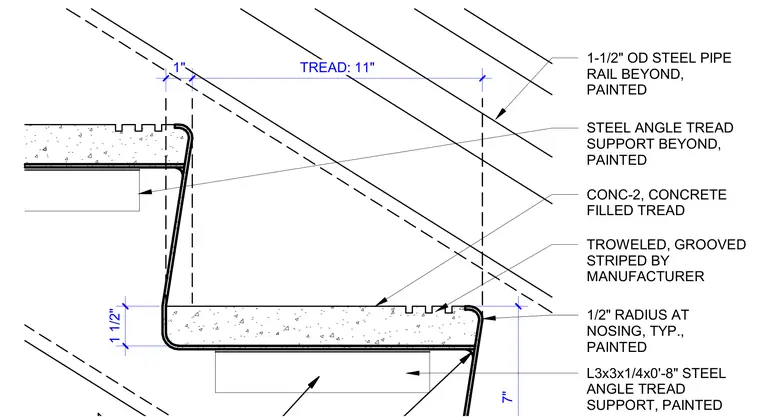

This stair tread and riser detail features a concrete filled tread with a troweled, grooved, and striped finish by the manufacturer and a one-half inch radius at the typical nosing. The concrete tread rests on a painted L3x3x1/4x0'-8" steel angle tread support, with additional painted steel angle tread supports shown beyond. A painted 1-1/2" outside diameter steel pipe handrail is located beyond the stair assembly.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
