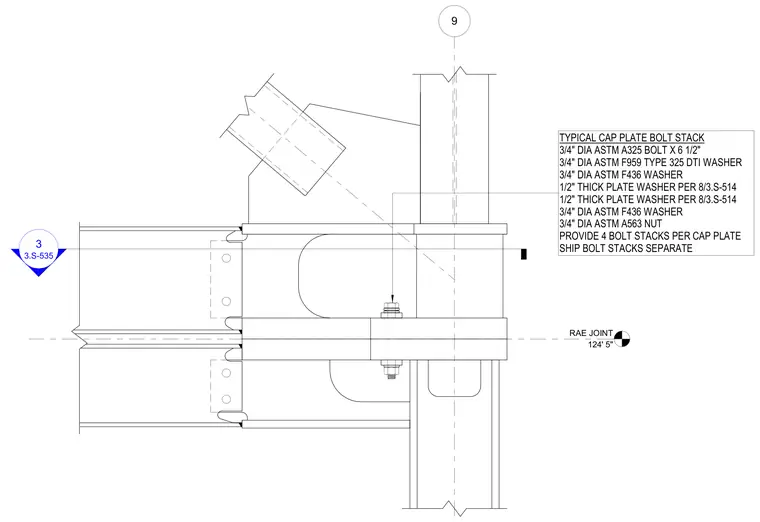

This structural steel connection details the intersection of steel members utilizing a typical cap plate bolt stack assembly. Each stack comprises a 3/4-inch diameter ASTM A325 bolt measuring 6-1/2 inches in length, paired with a Type 325 direct tension indicator washer, ASTM F436 washers, dual 1/2-inch thick plate washers, and an ASTM A563 nut. Four bolt stacks are provided per cap plate with components shipped separately. The connection incorporates structural steel plates and framing members aligned along Grid 9 at elevation 124'-5".
RAE JOINT 124' 5" 9 3.S-535 3 TYPICAL CAP PLATE BOLT STACK 3/4" DIA ASTM A325 BOLT X 6 1/2" 3/4" DIA ASTM F959 TYPE 325 DTI WASHER 3/4" DIA ASTM F436 WASHER 1/2" THICK PLATE WASHER PER 8/3.S-514 1/2" THICK PLATE WASHER PER 8/3.S-514 3/4" DIA ASTM F436 WASHER 3/4" DIA ASTM A563 NUT PROVIDE 4 BOLT STACKS PER CAP PLATE SHIP BOLT STACKS SEPARATE
