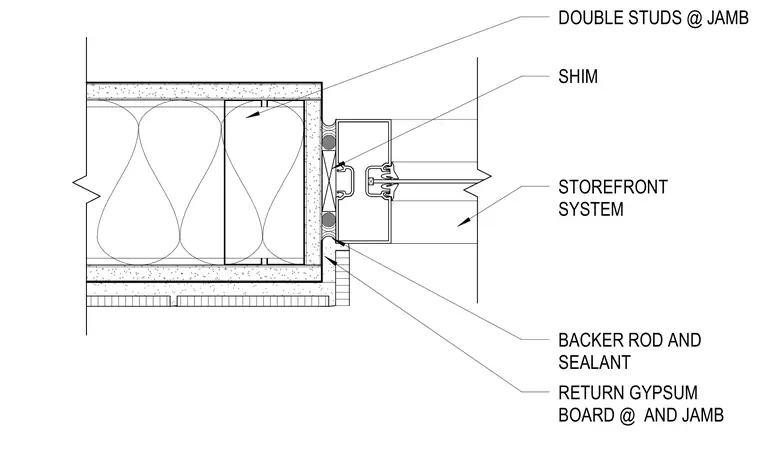

A storefront system meets a double stud wall jamb lined with gypsum board return. Shims adjust the frame alignment against the wall framing. Backer rod and sealant seal the joint between the storefront frame and the gypsum board return.
RETURN GYPSUM BOARD @ AND JAMB BACKER ROD AND SEALANT STOREFRONT SYSTEM SHIM DOUBLE STUDS @ JAMB
