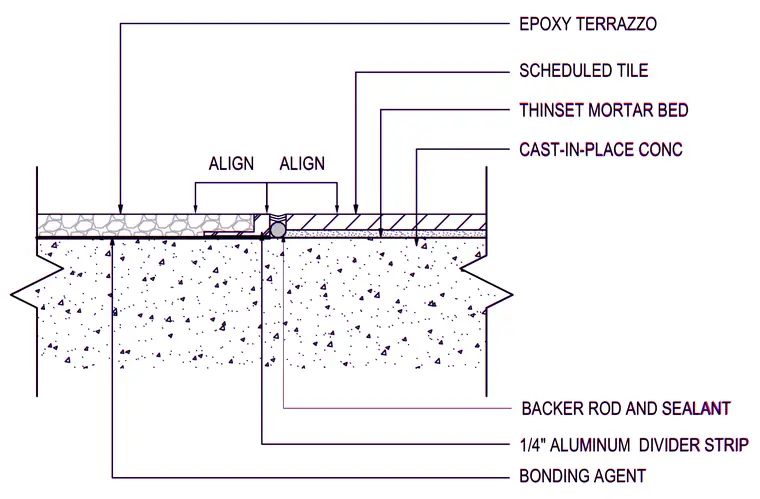

An epoxy terrazzo flooring system meets scheduled tile over a cast-in-place concrete substrate with a flush finish alignment. A bonding agent is applied beneath the epoxy terrazzo layer. A one-quarter-inch aluminum divider strip separates the two flooring materials. A backer rod and sealant fill the control joint between the finishes.
ALIGN ALIGN EPOXY TERRAZZO THINSET MORTAR BED CAST-IN-PLACE CONC SCHEDULED TILE BONDING AGENT 1/4" ALUMINUM DIVIDER STRIP BACKER ROD AND SEALANT ALIGN ALIGN EPOXY TERRAZZO THINSET MORTAR BED CAST-IN-PLACE CONC SCHEDULED TILE BONDING AGENT 1/4" ALUMINUM DIVIDER STRIP BACKER ROD AND SEALANT
