A countertop support bracket is anchored to a wall framing assembly consisting of metal studs and gypsum board. The bracket extends 20 1/4 inches outward with a 24-inch overall dimension. The wall assembly incorporates minimum 18-gauge studs with a horizontal T-section above. Vertical dimensions dictate spacing for the support bracket attachment along the stud framing.

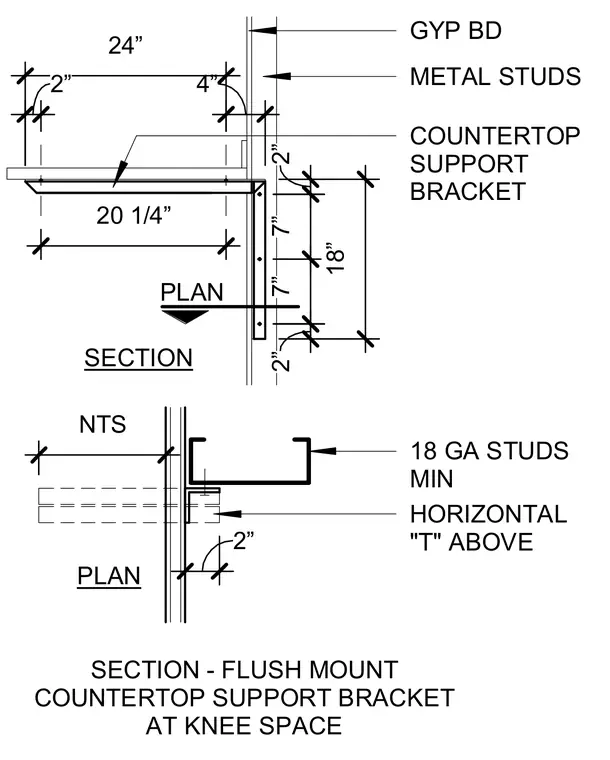

4” 24” 2” 20 1/4” 2” 7” 7” 2” 18” GYP BD METAL STUDS SECTION 2” NTS PLAN 18 GA STUDS MIN HORIZONTAL "T" ABOVE SECTION - FLUSH MOUNT COUNTERTOP SUPPORT BRACKET AT KNEE SPACE PLAN COUNTERTOP SUPPORT BRACKET
