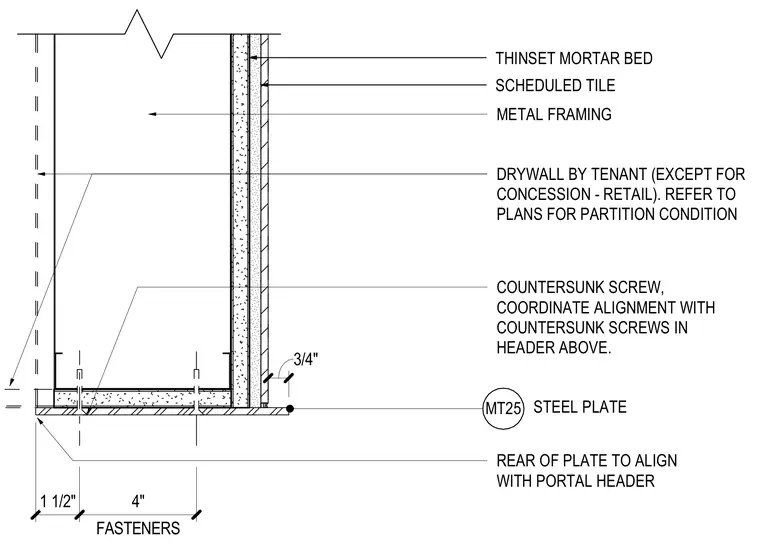

Scheduled tile is set in a thinset mortar bed over drywall supported by metal framing at the portal jamb. A three-quarter-inch steel plate labeled MT25 is anchored with countersunk screws, aligning with the portal header above. Fasteners are spaced four inches apart with a one-and-one-half-inch offset from the rear of the plate. Drywall is provided by the tenant except for concession and retail areas.
DRYWALL BY TENANT (EXCEPT FOR CONCESSION - RETAIL). REFER TO PLANS FOR PARTITION CONDITION METAL FRAMING 3/4" MT25 STEEL PLATE SCHEDULED TILE THINSET MORTAR BED COUNTERSUNK SCREW, COORDINATE ALIGNMENT WITH COUNTERSUNK SCREWS IN HEADER ABOVE. 1 1/2" FASTENERS 4" REAR OF PLATE TO ALIGN WITH PORTAL HEADER
