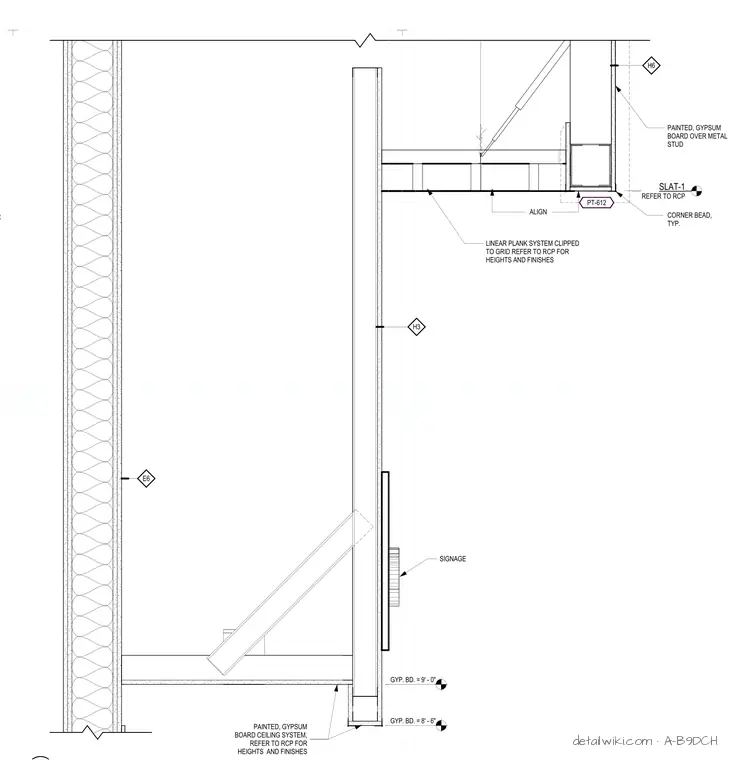

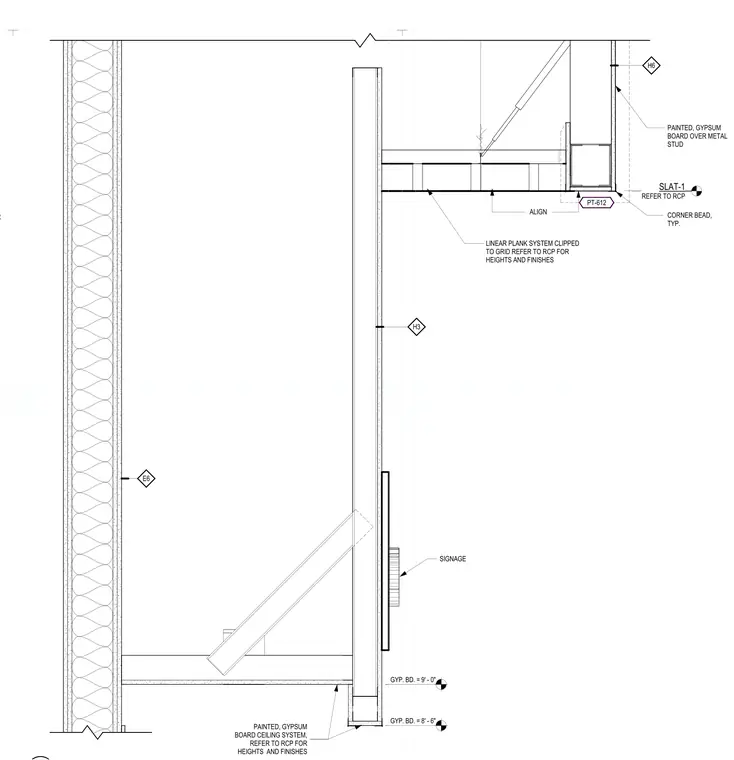

A linear plank system clips to a ceiling grid and terminates at a painted gypsum board wall finished with a corner bead. The wall consists of gypsum board over metal studs, adjacent to a secondary gypsum board ceiling system at a lower elevation. A signage element mounts to the vertical wall surface. The linear plank system aligns with the adjacent wall finish, with heights and finishes referenced to the reflected ceiling plan.
